Espen Technology Inc.

Features
	Compatible with Lutron Control System
	No Polarity: lamp ends can be reversed
	Same wiring as fluorescent lamp/ballast system
	UL 1598C for safety

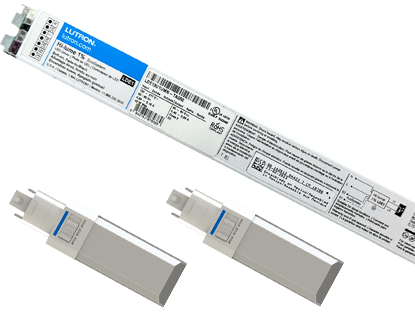

Lutron Compatible Type C Kit
PRODUCT SPECIFICATIONS

LED Lamp

Model	Lutron Control	Lamp Type	Lamp Size	Lamp Qty	CCT	Lumen	Output	Driver Model
LULK/G24D/H/P/2/8T/K/LO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3000K (selectable)	1400	Low	LDE1 4 U1UKS-CA050
LULK/G24D/H/P/2/8T/K/LO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3500K (selectable)	1480	Low	LDE1 4 U1UKS-CA050
LULK/G24D/H/P/2/8T/K/LO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	4000K (selectable)	1500	Low	LDE1 4 U1UKS-CA050
LULK/G24D/H/P/2/8T/KN/LO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3000K (selectable)	1400	Low	LDE1 4 U1UKN-CA050
LULK/G24D/H/P/2/8T/KN/LO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3500K (selectable)	1480	Low	LDE1 4 U1UKN-CA050
LULK/G24D/H/P/2/8T/KN/LO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	4000K (selectable)	1500	Low	LDE1 4 U1UKN-CA050
LULK/G24D/H/P/2/8T/M/LO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3000K (selectable)	1400	Low	LDE1 3 U1UMN-BA050
LULK/G24D/H/P/2/8T/M/LO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3500K (selectable)	1480	Low	LDE1 3 U1UMN-BA050
LULK/G24D/H/P/2/8T/M/LO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	4000K (selectable)	1500	Low	LDE1 3 U1UMN-BA050
LULK/G24D/H/P/2/8T/K/LO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3000K (selectable)	1400	Low	L3DA4U1UKS-HA050
LULK/G24D/H/P/2/8T/K/LO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3500K (selectable)	1480	Low	L3DA4U1UKS-HA050
LULK/G24D/H/P/2/8T/K/LO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	4000K (selectable)	1500	Low	L3DA4U1UKS-HA050
LULK/G24D/H/P/2/8T/KN/LO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3000K (selectable)	1400	Low	L3DA4U1UKN-HA050
LULK/G24D/H/P/2/8T/KN/LO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3500K (selectable)	1480	Low	L3DA4U1UKN-HA050
LULK/G24D/H/P/2/8T/KN/LO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	4000K (selectable)	1500	Low	L3DA4U1UKN-HA050
LULK/G24D/H/P/2/8T/M/LO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3000K (selectable)	1400	Low	L3DA4U1UMN-HA050
LULK/G24D/H/P/2/8T/M/LO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3500K (selectable)	1480	Low	L3DA4U1UMN-HA050
LULK/G24D/H/P/2/8T/M/LO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	4000K (selectable)	1500	Low	L3DA4U1UMN-HA050
LULK/G24D/H/P/2/8T/K/NO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3000K (selectable)	1600	Normal	LDE1 4 U1UKS-CA060
LULK/G24D/H/P/2/8T/K/NO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3500K (selectable)	1700	Normal	LDE1 4 U1UKS-CA060
LULK/G24D/H/P/2/8T/K/NO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	4000K (selectable)	1740	Normal	LDE1 4 U1UKS-CA060
LULK/G24D/H/P/2/8T/KN/NO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3000K (selectable)	1600	Normal	LDE1 4 U1UKN-CA060
LULK/G24D/H/P/2/8T/KN/NO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3500K (selectable)	1700	Normal	LDE1 4 U1UKN-CA060
LULK/G24D/H/P/2/8T/KN/NO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	4000K (selectable)	1740	Normal	LDE1 4 U1UKN-CA060
LULK/G24D/H/P/2/8T/M/NO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3000K (selectable)	1600	Normal	LDE1 3 U1UMN-BA060
LULK/G24D/H/P/2/8T/M/NO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3500K (selectable)	1700	Normal	LDE1 3 U1UMN-BA060
LULK/G24D/H/P/2/8T/M/NO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	4000K (selectable)	1740	Normal	LDE1 3 U1UMN-BA060
LULK/G24D/H/P/2/8T/K/NO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3000K (selectable)	1600	Normal	L3DA4U1UKS-HA060
LULK/G24D/H/P/2/8T/K/NO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3500K (selectable)	1700	Normal	L3DA4U1UKS-HA060
LULK/G24D/H/P/2/8T/K/NO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	4000K (selectable)	1740	Normal	L3DA4U1UKS-HA060
LULK/G24D/H/P/2/8T/KN/NO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3000K (selectable)	1600	Normal	L3DA4U1UKN-HA060
LULK/G24D/H/P/2/8T/KN/NO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3500K (selectable)	1700	Normal	L3DA4U1UKN-HA060
LULK/G24D/H/P/2/8T/KN/NO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	4000K (selectable)	1740	Normal	L3DA4U1UKN-HA060
LULK/G24D/H/P/2/8T/M/NO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3000K (selectable)	1600	Normal	L3DA4U1UMN-HA060
LULK/G24D/H/P/2/8T/M/NO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3500K (selectable)	1700	Normal	L3DA4U1UMN-HA060
LULK/G24D/H/P/2/8T/M/NO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	4000K (selectable)	1740	Normal	L3DA4U1UMN-HA060
LULK/G24D/H/P/2/8T/K/HO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3000K (selectable)	1920	High	LDE1 4 U1UKS-CA072
LULK/G24D/H/P/2/8T/K/HO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3500K (selectable)	2040	High	LDE1 4 U1UKS-CA072
LULK/G24D/H/P/2/8T/K/HO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	4000K (selectable)	2100	High	LDE1 4 U1UKS-CA072
LULK/G24D/H/P/2/8T/KN/HO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3000K (selectable)	1920	High	LDE1 4 U1UKN-CA072
LULK/G24D/H/P/2/8T/KN/HO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3500K (selectable)	2040	High	LDE1 4 U1UKN-CA072
LULK/G24D/H/P/2/8T/KN/HO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	4000K (selectable)	2100	High	LDE1 4 U1UKN-CA072
LULK/G24D/H/P/2/8T/M/HO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3000K (selectable)	1920	High	LDE1 3 U1UMN-BA072
LULK/G24D/H/P/2/8T/M/HO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	3500K (selectable)	2040	High	LDE1 3 U1UMN-BA072
LULK/G24D/H/P/2/8T/M/HO/HL1P	EcoSystem	Horizontal PL G24D	5.91"	2	4000K (selectable)	2100	High	LDE1 3 U1UMN-BA072
LULK/G24D/H/P/2/8T/K/HO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3000K (selectable)	1920	High	L3DA4U1UKS-JA072
LULK/G24D/H/P/2/8T/K/HO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3500K (selectable)	2040	High	L3DA4U1UKS-JA072
LULK/G24D/H/P/2/8T/K/HO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	4000K (selectable)	2100	High	L3DA4U1UKS-JA072
LULK/G24D/H/P/2/8T/KN/HO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3000K (selectable)	1920	High	L3DA4U1UKN-JA072
LULK/G24D/H/P/2/8T/KN/HO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3500K (selectable)	2040	High	L3DA4U1UKN-JA072
LULK/G24D/H/P/2/8T/KN/HO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	4000K (selectable)	2100	High	L3DA4U1UKN-JA072
LULK/G24D/H/P/2/8T/M/HO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3000K (selectable)	1920	High	L3DA4U1UMN-JA072
LULK/G24D/H/P/2/8T/M/HO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	3500K (selectable)	2040	High	L3DA4U1UMN-JA072
LULK/G24D/H/P/2/8T/M/HO/HL1P3W	3-Wire	Horizontal PL G24D	5.91"	2	4000K (selectable)	2100	High	L3DA4U1UMN-JA072

Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.

Espen Technology, Inc. | 12257 Florence Avenue | Santa Fe Springs, CA 90670 | Phone: (562) 529-2938 | Fax: (562) 529-2978

Toll Free:(866) 933-7736 | Email: info@espentech.com | www.espentech.com
