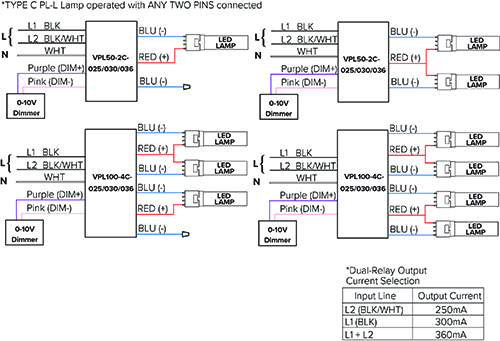

The CORETECH Type C PLL series LED lamp provides various length solution for new and retrofit kit application with 2G11 base PL-L fluorescent. The CCT switch allows 3-CCT selectable in the field. The Type C PL-L LED lamp is compatible with Class 2 LED driver using various control abilities, it is suitable for damp location including walkways & pathways, corridors, general indoor lighting, residential, commercial and industrial areas.
| Ordering Code | Lamp Current | Lamp Wattage | System Wattage | CCT (K) | Initial Lumens | CRI | Lamp Efficacy | System Efficacy |
|---|---|---|---|---|---|---|---|---|
| LT18W/8T-XT | 250mA | 5.5 | 7 | 3500K (selectable) | 750 | 80 | 136 | 107 |
| LT18W/8T-XT | 250mA | 5.5 | 7 | 4000K (selectable) | 750 | 80 | 136 | 107 |
| LT18W/8T-XT | 250mA | 5.5 | 7 | 5000K (selectable) | 750 | 80 | 136 | 107 |
| LT18W/8T-XT | 300mA | 6.5 | 8 | 3500K (selectable) | 875 | 80 | 135 | 109 |
| LT18W/8T-XT | 300mA | 6.5 | 8 | 4000K (selectable) | 875 | 80 | 135 | 109 |
| LT18W/8T-XT | 300mA | 6.5 | 8 | 5000K (selectable) | 875 | 80 | 135 | 109 |
| LT18W/8T-XT | 360mA | 8 | 10 | 3500K (selectable) | 1075 | 80 | 134 | 108 |
| LT18W/8T-XT | 360mA | 8 | 10 | 4000K (selectable) | 1075 | 80 | 134 | 108 |
| LT18W/8T-XT | 360mA | 8 | 10 | 5000K (selectable) | 1075 | 80 | 134 | 108 |
| Ordering Code | DLC Product ID | DLC Product Model | DLC Version |
|---|---|---|---|
| LT18W/8T-XT | NA | ||
| LT18W/8T-XT | NA | ||
| LT18W/8T-XT | NA | ||
| LT18W/8T-XT | NA | ||
| LT18W/8T-XT | NA | ||
| LT18W/8T-XT | NA | ||
| LT18W/8T-XT | NA | ||
| LT18W/8T-XT | NA | ||
| LT18W/8T-XT | NA |
Specification data is based on tests performed in a controlled environment and represents relative performance. Actual performance can vary depending on operating conditions. Application and performance data subject to change without notice. All specifications are nominal unless noted otherwise.
