The VEML8JV-1, LED emergency driver works in conjunction with the LED driver to allow the same LED fixture to be used for both normal and emergency operations. When power fails, VEML8JV-1 switches to emergency mode and keeps the luminaire illuminated at a reduced lumen output for a minimum of 90 minutes. VEML8JV-1 is suitable for use in new LED fixtures or LED retrofit applications. Includes LED charging indicator light, single-pole test switch, battery and installation hardware.

● Multi voltage (120-347VAC 50/60Hz)
● Compatible with LED driver
● Maintenance-free, long-life, high temperature Lithium-ion battery
● Safety extra low output voltage: 30-60 VDC

● For use with switched or unswitched fixtures
● Does not affect normal operation
● May be installed in the wireway or on top of fixture

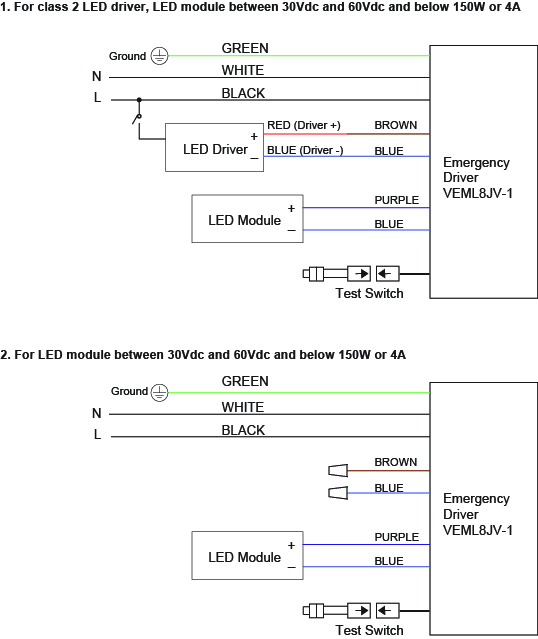

● Emergency driver must be fed from the same branch circuit as the LED driver
● Ambient temperature: 0°C/30°F - 50°C/120°F

● 5 years
● UL, cUL 924 listed
● FCC Part 15 Class B
● RoHS Compliant

Operates with Espen CoreTech type C LED lamp, VersaLinear LED module, or any other Class 2 LED lamp or module
